Permitting and Plan Review

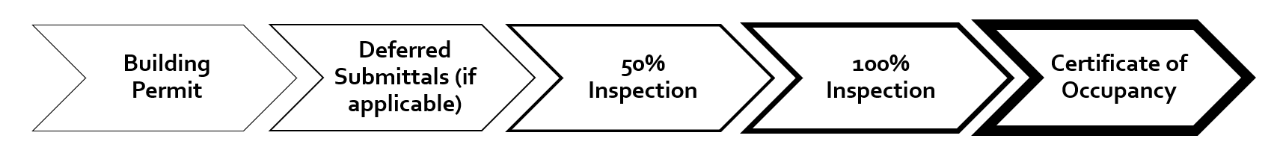

Permitting Process order of operations

General Submittal Requirements

All projects are reviewed through the OKSFM Accela Citizen Portal. Plan review is not done over email and paper submittals mailed or dropped off in the office are not accepted. Customers will need to set up a login and password and first-time users of the system are encouraged to follow the requirements of setting up an account and following the provided user guide. View Accela Account Registration Guidebook

PHASED - For large projects wishing to utilize a phased review process, ensure each building in each phase has a permit. Any deferred submittals will also be required to be phased, the same way the building permits were.

SAFE ROOM - Each safe room/storm shelter must be permitted separately. A safe room/storm shelter within a building must be permitted separately from the building. For projects applying for a building permit and storm shelter permit at the same time, if the square footage of the storm shelter is included within the building permit, only the minimum fee will apply for the storm shelter.

REMODEL & NEW - A project with a remodel and new construction must be permitted separately. One as existing building with remodel and one for the new construction.

CODES - Plans must meet the minimum state codes as adopted by the OUBCC.
To further assist with certain interpretations when designing plans, please see the State Fire Marshal Directives at the bottom of this page.

PROJECT NAME - The application / project name should be the name of the business or facility, plus a building identifier if there are multiple buildings on the property. The application / project name provided in the application is what is printed on the permit issued. If it is the building permit, it is also the name printed on the Certificate of Occupancy.
Examples:
Sample Public Schools - Admin Building
Sample Business - Building C
Sample Business - Greenhouse 4

Is an architect required for your project? Certain buildings require plans be designed by an architect.

Please refer to the Oklahoma Board of Architects and/or Oklahoma Board of Engineers to determine with an architect or engineer is required for your project by state law and/or rules required by these agencies.

The State Fire Marshal's office does not regulate when an architect is required for a project but does enforce the requirements as outlined and published by the Oklahoma Board of Architects.

The State Fire Marshal does not determine when an engineer is required for different aspects of a project unless specifically required by any Oklahoma codes - to include but not limited to any fire and/or life safety code requirements as ounlined in the most current code adoption by the State of Oklahoma.

All plans must be drawn to scale.

The minimum scale that drawings shall be drafted to is:
Architectural – 1/8” to 1 foot
Site Plans/Maps – 1” to 20’ or 30’ or 40’ feet (the best fit while showing sufficient detail)

Each sheet must have an independent scale: i.e., 1in = 40ft or 3/16in = 1ft

Each sheet must have a scale bar for each scale used on its respective sheet. Reflect a 3” bar for the designated scale.

When more than one scale is used on a sheet, an independent scale must accompany the applicable detail.

Specific requirements for electronic plans: All drawings must be calibrated. This calibration shall be saved in the drawing ensuring it is available to the reviewer.

Fire alarm and or fire protection plans shall utilize 1/8” scale.

  • Fire alarm plans shall contain a sheet with a legend of scale square outlines for wall and ceiling mounted strobe coverage areas for all candela ratings and ceiling heights per NFPA 72. See examples below.
    The legend shall identify the following for each outline:
    • Mounting location: Wall or Ceiling
    • Candela rating
    • Max lens height
    • Size of outline (same scale as the drawings)

Fire alarm plans shall be done in accordance with NFPA 72 and shall contain:

  1. A general note identifying required detector spacing based on NFPA 72

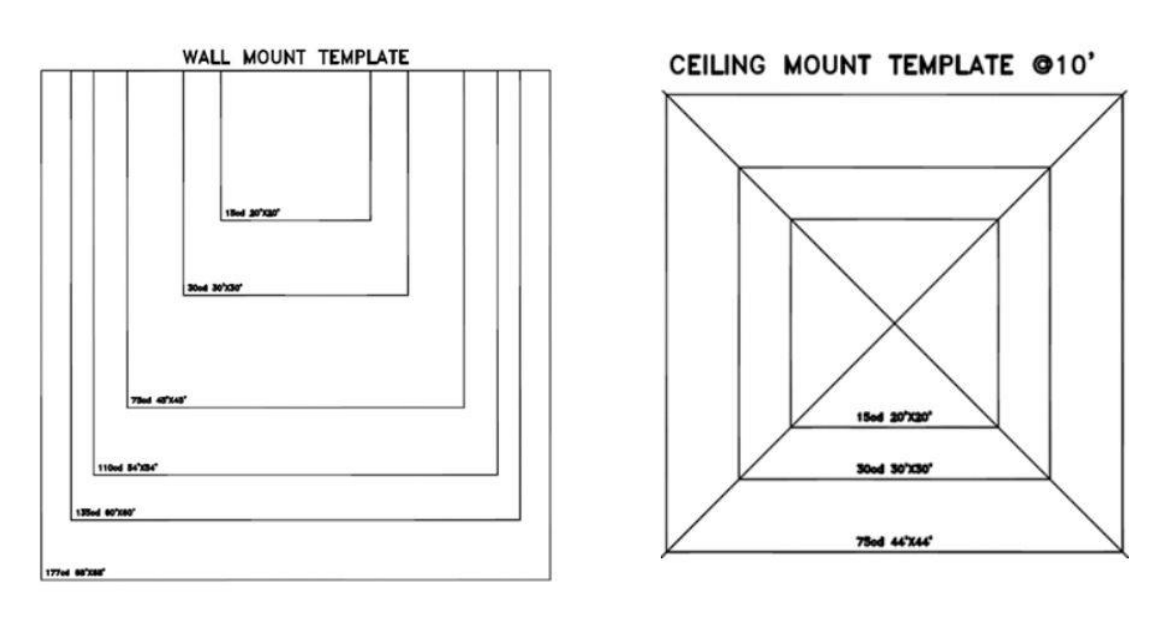

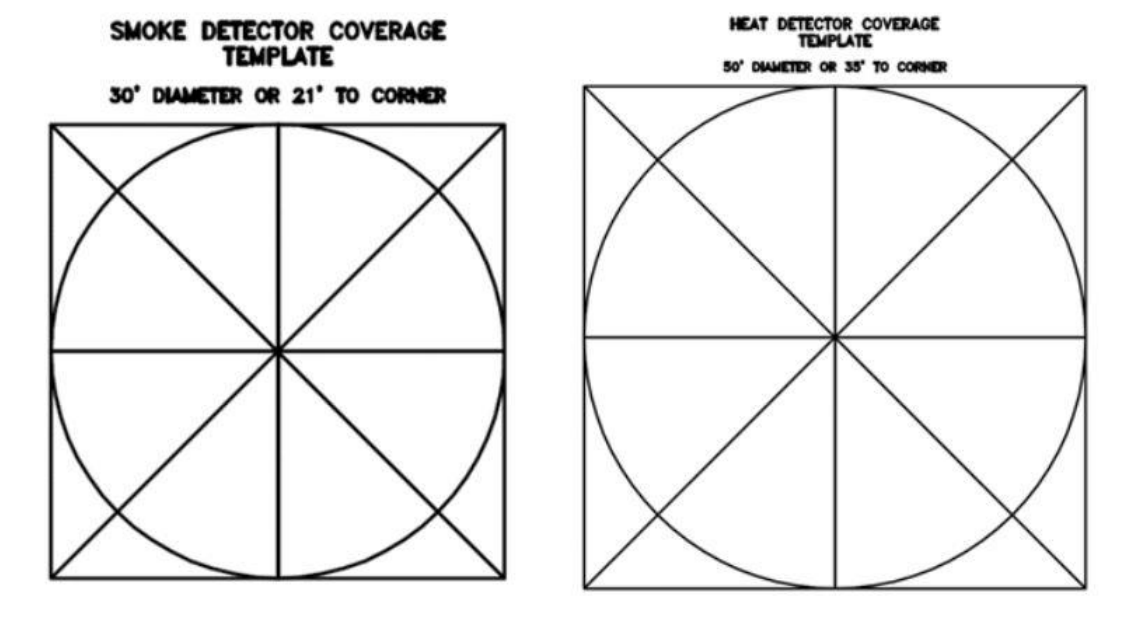

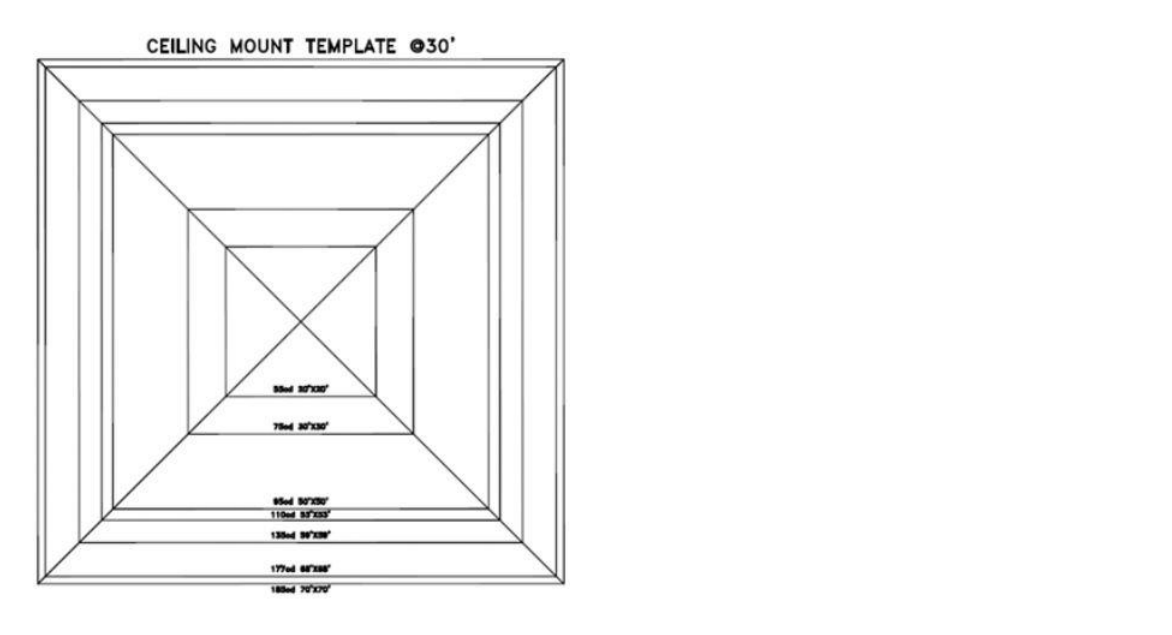

  2. To scale spacing outline templates shall be provided per the examples below.

PDF files must NOT require a password in order to view or to restrict the PDF permissions within the file.

All files should be numbered and named according to their order listed on your provided Title Sheet, Cover Sheet, or Table of Contents.

PDF files containing Plan / Drawing Sheets should contain a PDF bookmark for each sheet, that contains the Sheet Reference Number and optionally a Sheet Title, for example A1.0 LOWER FLOOR

Plan Sheet Reference Numbers should be unique within a Record/Permit, two different drawing sheets should not have the same Sheet Reference Number. Take that into account when the number is entered manually and when verifying the sheet numbers.

TIP - For best results, your plan sets should include a table of contents, i.e., bookmarks, of the sheet names. Suggested order for the table of contents is as follows:

  1. C (ex: Cover sheet, construction plans, civil)
  2. G (ex: General notes)
  3. S (ex: Structural)
  4. A (ex: Architectural)
  5. E (ex: Electrical)
  6. M (ex: Mechanical)
  7. P (ex: Plumbing)
  8. L (ex: Landscape)
  9. FP (ex: Fire Protection)

View the OKSFM Medical Marijuana Facility Guide

If any person or company approaches you and indicates they can issue a Certificate of Occupancy or Final Inspection for a fee on behalf of the State Fire Marshal, please report this illegal activity to local law enforcement or the Consumer Protection Division of the Oklahoma Attorney General.

When submitting your project involving medical marijuana, be sure to select the "Marijuana Permits" category when applying (see below). Projects cannot be switched between the categories - incorrect applications will be rejected and will require a resubmittal in the correct category.

If the project has paper plans submitted to the State Fire Marshal's Office that are currently in line for review, but you want to submit online, the applicant must first cancel the paper submittals. If the paper plans are not cancelled, both projects will be billed for both reviews performed.

Follow the submittal requirements listed on this page and view the information in the 'During Review' and 'Post Permit' tabs at the top of the page or the FAQ page.

ALL EXTRACTION FACILITIES ARE REQUIRED TO BE REVIEWED BY OKSFM. EXTRACTION FACILITIES ARE NOT ALLOWED 3RD PARTY REVIEWS.

3rd Party Plan Review for Building Permits Only

This option is not required and OKSFM staff will still provide plan review services for marijuana projects in the order received. However, we allow the option of utilizing this service if you choose.

The OKSFM has no control of third-party fees or review times.

The project will be invoiced by the OKSFM when it is processed. The listed applicant and listed owner will receive an email from noreply@oksfm.org with the invoice and link for payment. Please be aware that no refunds will be issued - discuss who will be making the payment before it's submitted.

Once payment is made to the OKSFM office, the project will be sent digitally to an approved third-party reviewer if the choice is selected on the Accela application (see below). The OKSFM will be the default reviewer unless otherwise selected.

Applications cannot be edited once they are submitted. Errors in the applications require a request for cancellation from the applicant to the OKSFM office and will start at the beginning again.

The third-party will send their own invoice and review the project from the contact information provided in the application.

All emails from the review system will come from noreply@oksfm.org. We would encourage you to save noreply@oksfm.org in your contacts, so the emails are not sent to your spam folder. It is your responsibility to ensure that you receive our system notifications. See the 'During Review' tab for more information.

The status of the project is available to the project’s applicant 24/7 by the applicant logging in to the Accela Citizen Access portal. The office does not provide updates due to the unlimited availability of the status and the issuance of automatic emails to multiple people with the project by the Accela system. If you are not the applicant, please reach out to the representative who is. See 'During Review' tab for more information on notifications.

Fee Schedule as Adopted by Oklahoma Administrative Code 265:60-1-2.

Common Mistakes

  • Errors with documents
    • Incorrect scale (see scale info listed above)
    • Plan set uploaded as separate, individual pages
    • Plan set and supporting documents submitted as one file altogether.
    • Incorrect page orientation (drawing sheets/plans are normally landscape, supporting documents are oftentimes portrait)
    • Sheet references left blank. This is essentially a page number for each sheet. See 'Uploading Documents' on this page for more.
    • All required documents were not uploaded. The blue rectangle at the top of the page will tell you what is required. You cannot continue the application without uploading all required documents.
  • Incomplete application
    • Required sections left blank or invalid/made up info was provided.
    • The owner information is a point of contact with the facility you are permitting, to include name, phone number and email address. It is not a project manager, general contractor, or architect of record unless those individuals own the business being permitted.
  • Automatic sign outs - The system may automatically sign you out after inactivity. Please save and save often.

Verify Before Submitting

Once the Accela application is submitted, the documents and application cannot be changed. If a change is needed to an application, it must be rejected and reapplied for, starting at the beginning.

Deferred Permit Submittals

Deferred submittals will not be accepted for review until after the construction plans for the project have been reviewed, approved, and issued a OKSFM building permit.

These are separate permits and must be submitted by a company licensed in Oklahoma to perform the work (for fire alarm, fire sprinkler, suppression, or access control permits).

OKSFM only allows the following elements to be deferred (unless otherwise previously approved):

  • Fire Alarm Systems
  • Fire Sprinkler Systems
  • Hood Suppression Systems
  • Alternative Suppression Systems
  • Access Control Systems
  • Carbon Dioxide Systems
  • Carbon Monoxide Systems
  • Smoke Control Systems
  • Emergency Responder Radio Coverage Systems

Submittal requirements by permit type

Submittals that do not meet the submittal requirements of the State Fire Marshal will be: (A) rejected/denied in processing or (B) disapproved in review. These statuses close the application - it cannot be revised if one of these occurs. It will require the applicant to start at the beginning of the permit process; to include filling out a new application, reuploading the plans, making fee payment again if the project was disapproved while in review.

Fees: $100 minimum

For the purposes of our office, addendums are changes requested to previously approved documents after work has commenced. Requests for addendums will utilize the existing permit that the original plans were approved under. Upon approval an addendum permit and comments will be issued indicating changes.

The addendum must be applied for by the same company who obtained the permit in the first place. If the addendum is to change the contractor working on the project, we require written confirmation from the original permit holder allowing the release of plans to the new contractor.

  1. Log into Accela, select 'Create Application' under the applicable tab (General or Marijuana), and select 'Addendum'.
  2. You will then select what type of addendum it is - meaning what plan review comments and/or permit you are wishing to change. The 'Addendum Type' field is not what the addendum is about.
  3. Upload a change or scope of work narrative to assist the staff in identifying what changes have been made.
  4. Upload and submit only your revised sheets and/or documents. Revisions on plans should be clouded.
  5. Upload a copy of the permit you are needing to change.

Addendums are required to correct all changes to approved permits, including but not limited to:

  • Yes / No questions marked incorrectly on the application
  • Project name change (only 1 name change per permit is allowed)
  • Project address correction
  • Request permit extension (only one 6-month extension is allowed). Submitted addendum must be received BEFORE the permit expires.

Fees: $0.20 per square foot, plus $4 OUBCC fee. $104 minimum.
Square footage used is directly from the application submitted.

A completed online application is required. If an architect/engineer drew the plans being submitted for the project, provide the license information in the application where requested.

Design letters (contractor statements) are required. An Architect/Engineer’s or subcontractor's written statement, confirming the DESIGN of the project meets all applicable codes in relation to the specific project. Design letters are required for the following categories: foundation, structural, mechanical, electrical, and plumbing. The letter(s) should be on the contracting company's letterhead and must identify the project name, address and county, as well as be dated, signed, and if applicable, stamped. If any of the above-mentioned categories are not applicable to the facility, then it must be explicitly stated in a scope of work letter to be uploaded to the documents.

Energy Conservation requirements omitted by the OUBCC.

Project plans shall consist of:

  1. A cover sheet detailing
  • The name, location and owner(s) of the project (NOTE: The project name and address should be on ALL submitted plans for all permits associated with the project, to include deferred submittals.
  • The code sheet, to include;
    • List codes utilized in the design. (Must be the current adoption by the OUBCC.)
    • Reference modification to the IBC by the OUBCC
    • Occupant load factor
    • Code defined use group(s) (occupancy type)
    • Code define construction type(s)
    • Special use and occupancy requirements (IBC Chapter 4 and IFC)
    • Square footage of the project, to include all floors, roof overhangs, covered patios, decks, balconies, etc.
    • Identify and provide the square footage of all fire areas, when applicable
    • Number of stories
    • Elevator - hydraulic or electric (if applicable)
    • Actual and allowable building heights and areas. Designed building height and area
    • If allowable increases are taken, how the increases are made (must show calculations), or unlimited area building if permissible.
    • Frontage increases applied, with calculations.
    • Unlimited area building (if applicable)
    • Roof assembly construction and rating
    • Occupant load - including existing (if applicable) and new. Identified per room including occupant load factor and square footage per room. Occupant load per exit door including occupant load factor - existing (if applicable) and new.
    • Wall and ceiling finish classifications
    • Interior floor finish classification
    • Decorative materials and trim-the percentage allowed and the percentage that will be used
    • Required? Already present? Being installed?
      • Answer all three for: fire sprinkler, fire standpipe system, fire alarm, standalone carbon monoxide (CO) system, fire suppression system, engineered smoke control system, smoke and/or heat vents, fire pump (provide the proper rated enclosure), fire command center (provide the proper rated enclosure)
    • Fire sprinkler increase applied. What percentage? Provide calculations.
    • Required plumbing fixtures and number of provided plumbing fixtures. Provide the ratio
  • Identify any specific chapters and/or sections of the International Fire Code as related to this project being used
  • Name, address and legal stamp of the designer (if required by Title 58 O.S. § 46.1 et al)
    • Wet or electronic stamps are accepted
    • Must be signed by the designer
  • Any alternatives that are selected. Identify each alternate specifically
  • Any directives that are used. Identify each directive applied



Remodel or Addition

  • Remodel
    • What the level of alteration is per the IEBC.
    • Remodels are required to have known Code deficiencies identified and the proposed Code compliant corrections.
    • Demolition plan for all existing buildings
      • Entire building layout with dashed lines showing all walls and doors being demolished, details identifying the scope of work being done, and identifying any fire walls, fire barriers, or fire partitions being affected.
    • Remodels shall identify all systems (M, E, P, fire alarm, fire sprinkler, carbon monoxide, etc.) that will be affected, and the extent of upgrades as defined by the IEBC.
    • Designers may request an OSFM inspection for deficiencies prior to submitting a project for review.
  • Addition: List the changes needed to the existing building for code compliance.
  • If an addition or remodel, what year was the current occupancy permitted (reference modification to the IEBC by the OUBCC)

2. Site map detailing

  • The physical location of the project and all structures within 30 feet of the project
    • Distances between buildings shall be dimensioned in feet
    • Means of egress locations shall be shown on all buildings within 30 feet of the project
  • The outline of the proposed project
  • Identify all lot lines indicating the private property side and public property side
  • Fire department access roads
    • Width at least 20’ wide
    • Length of road
    • Turn around (if required)
    • Provide a dimension of the distance from the roads to all sides of the building
    • Identify all designated fire department access lanes (Identify with a line and a distance in feet showing all hard surfaces used by fire apparatus within 150’ of all sides of the building. This distanced is as the hose is pulled off a truck on a hard surface and not as the crow flies. )
  • Identify all fire hydrants as either existing or new
    • All new fire hydrants must be installed within the Public Easement. A fire hydrant is required to be installed within 400’ of a non-sprinklered building and 600’ of a sprinklered building. The new fire hydrants are measured as the hose lays off the back of the fire truck on a hard surface and not as the crow flies.

3. Project Plans (Life Safety Sheet)

  • The floor plan of the entire project, to include basements, crawlspaces and attics.
  • All rooms and spaces shall be named, or provided another designation, to permit easier identification in the review and inspections phases.
  • Occupant loads per room or space (table & chairs or other furniture may need to be drawn to establish a lower factor) along with the occupant load factor and square footage per room
  • Fuel Burning Appliance / Fuel Burning Fireplace / Fuel Burning Forced Air Furnace locations with ducting
  • All rated construction
    • Wall design and rating (fire wall, fire barrier, fire partition, draft stopping, load bearing walls), please utilize UL Fire Wizard for assistance. Identify the location of all fire walls, fire barriers, fire partitions, draft stopping, & load bearing walls. Provide the associated hourly rating for each type of wall. Provide the associated UL design cut sheet.
    • Penetration protection - Identify location of doors, dampers, piping, etc.
    • Door and window design (occupant per door must be shown). Identify the associated rating for each door and window, location of all panic and fire exit hardware, the door swing, any special locking arrangements, and the location of all rescue windows.
  • All elements of the means of egress
    • Maximum travel distance in feet. Specifically identify any dead-end corridors and calculated distances.
    • Egress path and travel distances
    • Exits (must show calculated occupant load egress along with the occupant load factor. Identify any occupant load egress as modified by the OUBCC)
      • Exit access, exit discharge, exit signs, exit illumination (interior & exterior)
      • If an alteration or addition, the calculated occupant load of the existing building must be included in the exit calculations.
      • All exits must be accurately shown for the existing building.
    • Identify emergency lights, area(s) of refuge, corridor rating (when applicable), elevator and/or lift (electric or hydraulic)
    • Rescue windows, if required. Windows designated for rescue shall have the dimensions shown of the opening.
    • Stairs and/or ramps - Pitch of stairs and ramp incline must be shown and handrail specifications must be provided.
  • Location of fire extinguishers with the associated travel distance
  • Fire command rooms specifically identified
  • Fire sprinkler riser room
  • Identify accessible dwelling and sleeping units (including hearing impaired rooms)
  • Identify accessible wheelchair spaces where required
  • Provide a building section view elevation diagram with dimensions for multiple story buildings (more than 2 floors).

4. Building Elevation

  • Identify building height, floor elevations, roof slope/pitch
  • Dead loads within 10’ of the roof edge must have guards

5. Include limited architectural sheets

  • Mechanical sheets if fire and smoke dampers are installed and/or the location of all fuel burning appliances, fuel burning fireplaces, fuel burning forced air furnace locations with ducting
  • Electrical sheets showing all emergency light and exit sign drawings

Fees: $0.06 per square foot of total work area, plus $4 OUBCC fee. $104 minimum.
Work area square footage is directly from the application submitted.


Shall be designed by a minimum of NICET III Certification or Professional Engineer with discipline in fire protection and submitted by an Oklahoma Licensed Fire Alarm company.

  • A completed and accurate online application is required.
    • REQUIRED: Provide the license information in the application where requested in Step 2.
    • Provide valid owner information.
  • Calculations and voltage drop calculations
  • Specification book(s)
  • Plans
    • Fire alarm and or fire protection plans shall utilize 1/8” scale.
    • Plans shall be in accordance with NFPA 72 and NFPA 170.
    • A general note identifying required detector spacing based on NFPA 72
    • Plans must be original plans with fire alarm devices only. Provide room names.
    • Plans shall contain a sheet with a legend of scale square outlines for wall and ceiling mounted strobe coverage areas for all candela ratings and ceiling heights per NFPA 72. See examples below.
      • The legend shall identify the following for each outline:
        • Mounting location: Wall or Ceiling
        • Candela rating
        • Max lens height
        • Size of outline (same scale as the drawings)
    • All drawings must be calibrated. This calibration shall be saved in the drawing, ensuring it is available to the reviewer

Any time the building layout changes by adding, altering, removing, any doors / walls etc., and the facility has a fire alarm, fire sprinkler system, or other protection system(s), the OKSFM requires at a minimum the appropriate application, scope of work letter, and / or plans to be submitted for review and verify that the existing system still meets the code.

For example, by altering the layout, a wall, door, or other layout change, this may require additional notification and or detection devices depending on the system, relocation of such said devices, OR it may not require anything, but the proper fire protection company will need to verify this. The fire protection company would be required to visually examine the scope of work area to determine if any additional devices are required to meet code. If none are required, then it simply requires a scope of work and / or letter indicating as such on company letterhead.

At a minimum we would require the following:

  • Visual site inspection from fire alarm or fire protection company (Oklahoma licensed) to verify the system meets code within the scope of work area (addition or removal of devices).
  • An application to be submitted electronically, along with a letter indicating no such devices are required or a scope of work letter indicating what will be done.
  • Plans if applicable to the project or scope of work area.

Fees: $0.06 per square foot of total work area, plus $4 OUBCC fee. $104 minimum.
Work area square footage is directly from the application submitted.

Shall be designed by a minimum of NICET III Certification or Professional Engineer with discipline in fire protection and submitted by an Oklahoma Licensed Fire Sprinkler company.

  • A completed and accurate online application is required
    • REQUIRED: Provide the license information in the application where it's requested in Step 2.
    • Provide valid owner information. This is not a project manager or general contractor.
  • Calculations
  • Specification book(s)
  • Plans
    • Must be computer/CAD designed to a scale no smaller than 1/8”.
    • Provide room names
    • Site Plan
      • Showing the location of the entire buildings, water line, fire department connection, and fire hydrant(s).



Any time the building layout changes by adding, altering, removing, any doors / walls etc., and the facility has a fire alarm, fire sprinkler system, or other protection system(s), the OKSFM requires at a minimum the appropriate application, scope of work letter, and / or plans to be submitted for review and verify that the existing system still meets the code.

For example, by altering the layout, a wall, door, or other layout change, this may require additional notification and or detection devices depending on the system, relocation of such said devices, OR it may not require anything, but the proper fire protection company will need to verify this. The fire protection company would be required to visually examine the scope of work area to determine if any additional devices are required to meet code. If none are required, then it simply requires a scope of work and / or letter indicating as such on company letterhead.

At a minimum we would require the following:

  • Visual site inspection from fire alarm or fire protection company (Oklahoma licensed) to verify the system meets code within the scope of work area (addition or removal of devices).
  • An application to be submitted electronically, along with a letter indicating no such devices are required or a scope of work letter indicating what will be done.
  • Plans if applicable to the project or scope of work area.

Fees: $0.06 per square foot of total work area, plus $4 OUBCC fee. $104 minimum.
Work area square footage is directly from the application submitted.

Shall be designed by a minimum of NICET III Certification or Professional Engineer with discipline in fire protection and submitted by an Oklahoma Licensed Fire Suppression company.

  • A completed and accurate online application is required
    • REQUIRED: Provide the license information in the application where requested in Step 2
    • Provide valid owner information. This is not a project manager or general contractor.
  • Calculations
  • Specification book(s)
  • Plans
    • Plans must be drawn and printed to a scale no smaller than 1/8”.

$100 per access point / door, plus $4 OUBCC fee. $104 minimum.
Calculation is directly from the application submitted.

Shall be submitted by an Oklahoma Licensed Access Control company

  • A completed and accurate online application is required.
    • REQUIRED: Provide the license information in the application where requested in Step 2.
    • Provide valid owner information. This is not a project manager, general contractor, or the architect of record.
  • Plans
    • Plans must be original plans with access control devices only. Provide room names.
    • A floor plan must be computer/CAD designed to a scale no smaller than 1/8”.
    • Drawings detailing the installation location and layout, including all hookups/integration into building systems (i.e., fire alarm) and wiring
    • Circuit identification of initiating and releasing devices
    • A door schedule showing the fire rating, hardware, and any ancillary devices to be installed
  • Scope of work letter
    • A letter identifying the operation of the Access Control / Egress Control System in normal, loss of power, and the activation of a fire protection system.
    • Sequence of operation
  • Specifications
    • Manufacturer’s specification sheets for the hardware (cut sheets)
    • Manufacturer’s specification sheets for the type of detector used (cut sheets)
    • Indicate U.L. compatibility between system components and the fire alarm system

Fees: $0.06 per square foot of total work area, plus $4 OUBCC fee. $104 minimum.
Work area square footage is directly from the application submitted.

  • A completed and accurate online application is required.
    • Provide valid owner information. This is not the project manager, general contractor, or architect of record
  • Specification book(s)
  • Plans
    • Identify all container locations, where it enters the building, piping, joints, and end use equipment. Provide room names.
    • Plans must be original plans with carbon dioxide devices only
    • Plans must be computer/CAD designed to a scale no smaller than 1/8”.

The carbon dioxide notification appliance cannot have the word “FIRE” on the device.

Any activation of the carbon dioxide detector shall initiate a “Local Alarm” both audible and visual if a fire alarm system is not installed.

Any activation of the carbon dioxide detector shall be tied to the fire alarm system and initiate the building’s fire alarm system if one is installed.

Permit required for more than 100 pounds of accumulative CO2.

Fees: $0.06 per square foot of total work area, plus $4 OUBCC fee. $104 minimum.
Work area square footage is directly from the application submitted.

For a standalone carbon monoxide system:

  • A completed and accurate online application is required
    • Provide valid owner information. This is not the project manager, general contractor, or architect of record
  • Calculations and voltage drop calculations
  • Specification book(s)
  • Plans
    • Plans must be original plans with carbon monoxide devices only
    • Plans must be computer/CAD designed to a scale no smaller than 1/8”

Fees: $0.06 per square foot of total work area, plus $4 OUBCC fee. $104 minimum.
Work area square footage is directly from the application submitted.

This section is for single/multi-station smoke alarms NOT installed by a licensed fire alarm company, but rather installed in the project by an Oklahoma licensed electrician.

Shall be designed by a minimum of NICET III Certification or Professional Engineer with discipline in fire protection or an Oklahoma licensed electrician, submitted by an Oklahoma licensed eletrician.

  • A completed and accurate online application is required.
    • Provide valid owner information. This is not a project manager, general contractor, or architect of record
  • Calculations (if required) and voltage drop calculations (if required).
  • Specification book(s)
  • Plans
    • Plans must be original plans with smoke alarm devices only. Provide room names.
    • Plans must be computer/CAD designed to a scale no smaller than 1/8”.
    • Plans shall be in accordance with NFPA 72 and NFPA 170.

Fees: $0.06 per square foot of total work area, plus $4 OUBCC fee. $104 minimum.
Work area square footage is directly from the application submitted.

  • A completed and accurate online appplication is required.
    • Provide valid owner information, this is not a program manager, general contractor, or architect of record.
  • Calculations and voltage drop calculations.
  • Specifications book(s)
  • Scope of Work Letter
    • A basis of design report describing the system’s purpose and design objectives. The design engineer should prepare a report that not only identifies the design objectives, code requirements, and system calculations, but should also explicitly state the design assumptions, system operation logic, and commissioning procedures. The engineer shall indicate if the objectives will be accomplished with smoke containment systems (e.g., stair pressurization) or smoke management systems (smoke exhaust).
    • A letter identifying the operation of the Smoke Control System in normal, loss of power, and the activation of a fire protection system
    • A letter identifying the testing procedures
    • Provide technical justification if any portion of the design basis does not conform to NFPA 92
  • Plans (NOTE: All smoke control systems shall be in accordance with IBC and or NFPA requirements for Smoke Control Systems.)
    • Plans must be original plans with smoke control devices only. Provide room names.
    • Plans must be computer/CAD designed to a scale no smaller than 1/8”
    • As part of the architectural drawings provide smoke barrier drawings showing the location of all smoke zones: delineate each zone as passive or active and provide a zone designation for each active zone. Additionally, show occupancies of each smoke zone and all openings required e.g., doors required to open for make-up air. The zones and designations used in the architectural drawings shall correspond to zones and designations used in the smoke control report
    • Provide sufficient detail in the drawings to support engineering calculations, e.g., leakage values for walls, ceilings, and doors; locations and heights of surrounding buildings; sizes and locations of make-up air openings; and smoke-barrier wall construction details.
    • Provide a schematic riser diagram of the smoke control/management systems
    • Mechanical
      • Identify the major mechanical components used for smoke control in appropriate schedules. Include fans, drivers, variable frequency drives (VFDs) and their locations, and louver and damper operators. Indicate the minimum service factor for fan motors (1.15) and the minimum number of fan belts for belt-driven fans, and temperature rating of fans and ducts
      • Identify the ducts and shafts used for smoke control in the schematic riser diagrams and plan drawings. Indicate the minimum test pressure for ducts and shafts used for smoke control (1.5 times the maximum design pressure)
      • For smoke control systems with variable frequency drives (VFDs), locate the VFDs outside the smoke zone they serve. Alternatively, protect VFDs within the smoke zone they serve from smoke and heat, so they are capable of continued operation after detection of fire for at least 20 minutes or the time set by the required safe exiting time (1.5 times RSET), whichever is greater. VFDs shall not serve more than one end device unless listed for smoke control service.
      • For air-moving systems greater than 2,000 cfm, identify where automatic shutoffs are not provided due to smoke control Electrical
      • Identify the major electrical components used for smoke control, including standby (or emergency) power source, transfer switches, and control system(s)
      • Provide load calculations for the standby/emergency power source.
      • Show the layout of the standby generator room (or other secondary power source). The standby generator and its transfer switches shall be in a separate room from the normal power transformers and switchgear
      •  Show the locations of the fire alarm control panel (FACP), firefighters’ smoke control panel (FSCP) and fire alarm annunciator(s).
      • Provide a 1-line diagram showing feeder conductor sizes, overcurrent protection sizes, ampacity calculations, and the connected loads on each feeder supplied by the standby (or emergency) power source
      • For high-rise buildings, show the layout of the Fire Command Center (Central Control Station) for required equipment and furnishings
      • For buildings with passive smoke zones, connect the motor operators for smoke dampers to the building power panel and emergency/standby power – not the tenant space power panels
      • Each stair pressurization fan (and any other smoke control fans) shall be provided with independent power and control wiring. Wiring for control and power may be installed in an exit enclosure only if it serves that particular exit enclosure
    • Fire Sprinkler
      • Sprinkler zones shall be coordinated and match the Smoke Control Report
      • For atriums, provide separate sprinkler zones for the atrium and non-atrium spaces
    • Fire Alarm
      • For atriums/atria show the simplified fire alarm/smoke control matrix per the Smoke Control Report
      • Sequence of Operation – a written description or matrix chart shall be provided to define the events that occur when various initiating triggers are activated concerning the Smoke Control System
      • Show every fire alarm/smoke control system input in a column on the left. Include every initiating device by address. Inputs may be combined with prior approval. Include manual operation of control switches for fans and dampers where the switch controls multiple outputs
      • Show every fire alarm/smoke control system output in a row across the top. Include every notification appliance by zone, every fan and damper (or group of dampers) by identifier, every monitored device by identifier and every other event that must occur for proper operation of the smoke control system. Outputs may be combined with prior approval
      • Show automatic fan shutoffs where required or provided
      • Show supervised conditions for required smoke control components such as fan power disconnect, pressure differentials, switches, fans not full speed, and doors/windows/dampers open or closed
      • Alarm, supervisory and trouble signals shall be transmitted to an approved supervising station in accordance with NFPA 72
      • Provide a full-scale color drawing of the firefighters’ smoke control panel (FSCP) for review and approval prior to fabrication
      • Show individual control switches for fans and dampers or multiple dampers with identical actions, and automatic closing/opening doors required for smoke control
      • Show status indicators for all smoke control equipment by pilot lamp-type indicators as follows:
        • GREEN: Fans, dampers and other operating equipment are in their ON or OPEN status. Provide a green light to indicate Smoke Control Mode and another for Manual Mode.
        • RED: Fans, dampers and other operating equipment are in their OFF or CLOSED status.
        • YELLOW: Fans, dampers and other operating equipment are in a fault status
        • WHITE: Fans, dampers and other operating equipment are in their normal status (use of the white light on panels will be reviewed on a case-by-case basis and designed to what makes the most sense without creating confusion.) Add two visual indicators on the top right corner of the FSCP to indicate panel status.
        • Green visual – Panel Normal
        • Red Visual – Panel in smoke control mode
      • Provide a legend or matrix either on the panel or separately mounted showing the configuration of fans, dampers and doors in normal status mode and smoke control status mode
      • Smoke control systems shall have an automatic weekly self-test feature. The self-test feature shall automatically command activation of each associated function(s). An audible and visual trouble signal shall be annunciated at the FSCP identifying any function that fails to operate within the required time period.
  • Smoke Control Report and Special Inspection Program
    • A written report, titled Smoke Control Report, shall be authored by the smoke control consultant or the mechanical engineer-of-record.
    • Shall include the following information:
      • Cover Page: Provide a cover page showing the facility name, address, revision number, building permit application number, date of submittal and preparer
      • Signature Page: Provide a completed signature page with final report. Signatures shall include all of the following: Architect of record, Mechanical Engineer of record, Electrical Engineer of record, Smoke Control system designer, and owner
      • Code References: List all applicable codes standards including editions, approved equivalencies, and pre-application agreements for the project.
      • Building Description: Provide a general narrative overview of the building and its uses. Include the building height, number of stories, basement levels, gross floor area, types of occupancies and type(s) of construction. Identify the architectural features that affect smoke control design and lifesafety: size of atriums, location of fire/smoke barriers, fire-proofing, fire safety, engineering judgments, make-up air openings, operable windows, vents, floor and wall openings, door closers, ceiling heights, pressurized and non-pressurized stair enclosures, open stairs, shafts used as ducts, duct construction and material, exiting, horizontal exits, heights and types of surrounding structures/buildings, Elevators for Firefighters use, etc.
      • Fire suppression systems: Provide a concise narrative overview of the fire suppression system(s). Identify the types of systems and areas served (zoning), major equipment, design criteria and basic operation. Identify the type, location, and quantity of flammable or combustible fuel, and hazardous/toxic materials, if any.
      • HVAC and ventilation systems: Provide a concise narrative overview of the HVAC systems whether or not used for smoke control. Identify the types of systems and areas served (zoning), major equipment, fire and smoke dampers type and class including link temperatures, design objectives and basic operation. Identify where fire dampers have actuating devices with increased operating temperatures (not more than 350F) due to smoke control and specify the actuating temperatures for each type of fire damper. Specify damper response time design per. Identify where fire/smoke dampers are not provided due to smoke control. Identify where fire/smoke dampers are not provided at shafts due to 22-inch sub-ducts and continuously operating exhaust fans connected to the standby power system
      • Power supply systems: Provide a concise narrative overview of the primary and standby power sources for the smoke control systems. Include the locations of the standby power source, transfer switches, normal power transformers and switchgear, and describe the independent routing of the normal and standby power distribution systems. Each stairway pressurization fan power shall be supplied through a raceway separate from other stairway pressurization fan power supplies beginning at the automatic transfer switch. Address the need for uninterruptible power supplies and power surge protectors. Provide a table to indicate all equipment required to be connected to emergency power. Specify the required duration the Stand-by/Secondary Power supply is required to operate the Smoke Management System.
      • Fire alarm, detection, and control systems: Provide a concise narrative overview of the fire alarm, detection, and control systems as they relate to the smoke control system. Include the building management system (BMS) where used for or interconnected to the smoke control system. Identify the smoke control components that must be monitored for proper operation (supervised end-to-end) and the method of supervision. Address the listing of fire detection and control systems including the building management system where used for smoke control
      • Firefighters Control Panel: Include a narrative description of the Firefighters Control panel. Refer to the Fire Alarm Plan submittal section for additional information
      • Smoke Control/Management Systems: Provide a concise conceptual narrative overview of the smoke control/management systems: concepts, approaches, and design objectives, types of systems, zoning, major equipment, analysis methods, and basic operation and activation sequences
      • As applicable, provide a detailed description of each smoke control zone including: occupancy; fire suppression and fire alarm systems, including specific design criteria required by the smoke control system; construction type, ratings and leakage values; door and window types, ratings, leakage values, and closing methods; operable and fixed exterior openings; expected fire size/loads, combustible materials; means of egress; method(s) of smoke control; analyses methods, with referenced equations for hand calculations, name and version of software; design scenarios addressed, including specific weather data used for each scenario; summary of results including but not limited to tenability, timed egress, i.e. ASET vs. RESET; sprinkler type and activation times; activation methods
      • Provide small-scale drawings: 11” x 17” minimum, showing the location of all smoke zones, including passive smoke zones; include the drawings as an appendix to the Smoke Control Report
      • Provide rational analyses of the design: address the stack effect, temperature effect of the fire, wind, HVAC interactions, climate, and minimum duration of operation. This includes any HVAC or non-smoke control related ventilation equipment such as fans intended to run continuously even during a fire event.
      • For smoke control systems using the passive method: identify the total leakage area for typical smoke barriers, and provide calculations, simulation results (CONTAM, FDS, etc.), and other technical justification as necessary to demonstrate that tenability is maintained in zones adjacent to each passive zone in the event of a fire with the given minimum leakage areas
      • Identify smoke zone openings which must be open or closed for proper operation, such as doors, windows, dampers, and louvers; identify smoke zone openings that are supervised in the open and/or closed positions.
      • Address the piston effect of elevators. Additionally, for single car elevator shaft provide calculations to show the smoke control system is not overcome by the piston effect.
      • Identify the smoke control system components tested weekly by the automatic self-test features.

Specific Items to Keep in Mind

  • System start-up time: The system start-up time needs to include the time for detection of the fire, signal processing time, and the system activation time. Specific oversights involve improperly estimating the time to detection or assuming that system activation commences immediately upon activation, thereby ignoring signal processing time, fan start-up times, or the time needed for dampers to open or close.
  • Makeup air: While some designs fail to even consider the need for providing makeup air for exhaust systems, others fail to consider the impact of the makeup air. What will be the impact of makeup air? What impact will the velocity have on plume dynamics and doors opening or closing? When answering these questions, consider the periodic testing and inadvertent operations of the system.
  • Interaction with other systems: These may include other systems, typically HVAC systems, in the building and other smoke control systems. The IBC requires one to consider the interaction effects of multiple smoke control systems.
  • System reliability: Reliability data for various fire protection systems and the components of such systems is often hard to obtain. Even where data may exist, the range of reliability of such systems documented in various studies may be significant. As an alternative, the design engineer might consider evaluating fire scenarios in which individual systems and features fail. This is consistent with a design fire scenario often required for performance-based designs
  • Coordination of design documents: Frequently, the design of a smoke control system is not prepared by a single engineer, such as a fire protection engineer, but instead by multiple engineers, each practicing within their areas of expertise. The Basis of Design letter must demonstrate the coordination effort by business name and responsible party full name and signature of all participants on the last sheet of the drawing set.
  • Damper supervision and control at the Firefighters Control Panel is required for all active-passive zone boundaries, e.g., corridor to residential units, group control and interlocking on fans with dampers is allowed. The minimum acceptable supervision and control required will indicate proper damper operation and fault condition for smoke control operation i.e., open and closed. These dampers shall be included in the UUKL Self-Test and fail-safe in the closed position
  • Fan supervision and control at the Firefighters Control Panel is required for all fans used in the smoke control system. Each fan and damper shall have a separate annunciator lights and controls, unless otherwise approved. Power (amperage and voltage) shall be supervised at the downstream side of the electrical disconnects and a positive means of verifying airflow shall be provided (pressure switch/airflow sensor) at each fan and indicated on the Firefighters Control Panel as a fault condition if failure occurs. Supervision and control of additional fans may be required in cases where an alternate/equivalent method is approved, e.g., where garage CO exhaust is utilized for smoke control, and use of supply fans are necessary for adequate smoke exhausting.

Fees: $0.20 per square foot of total work area, plus $4 OUBCC fee. $104 minimum.
Work area square footage is directly from the application submitted. If the area of the shelter is included in a building permit also being applied for, the shelter will be charged the minimum.

All construction intended for this use shall be designed to the Codes and references as adopted or modified by OUBCC, regardless of the funding source.

All the above building permit requirements shall be met, with the following additions:

  • All FEMA Tornado/Storm Shelter and safe room designs shall be accompanied by a completed 2015 edition, FEMA P-361 Appendix C form.
  • All ICC-500 Tornado/Storm Shelter and safe room designs shall be designed to ICC500.
  • All Tornado/Storm Shelters shall undergo a peer review prior to submittal to the OKSFM.
    • The peer review report shall be attached to the submitted documents.
    • Any and all conflicts between the designer and peer review SHALL be resolved prior to submittal for review.
  • Fuel Burning Appliance / Fuel Burning Fireplace / Fuel Burning Forced Air Furnace locations with ducting
  • Planning and scheduling for the required special inspections and the quality assurance plan. Copies of these special inspection reports shall be presented to the OKSFM Agent at the final inspection.
  • An Architect/Engineer’s or sub-contractor written statement concerning the safe room on letterhead identifying code compliance with all the applicable codes in relation to the specific building being built. The letter must identify the project name address, county, dated, signed, and stamped. A Contractors Responsibility written statement is required for all FEMA and ICC-500 Tornado/Storm Shelters.

Energy Storage Systems (ESS)

$0.20 per square foot of the structure footprint. $104 minimum.

The OKSFM would require at submittal and in accordance with currently adopted Oklahoma codes that the following would apply for ESS systems. NOTE: Oklahoma has amended the ESS code from the IFC, refer to OUBCC website for amendments. In addition, the OSFM may also utilize NFPA 855 for any ESS requirements. The installation of any support buildings applicable to your project would also be required to be permitted with our office in accordance with Oklahoma law, along with meeting the requirements for both the currently adopted IBC/IFC editions and/or NFPA if applicable.

At a minimum, the following information shall be provided with a completed online building permit application of any ESS Storage Systems (below is also not an all-inclusive list):

  • Construction Documents
    • Location and layout diagram of the room or area in which the ESS is to be installed.
    • Details on the hourly fire-resistance ratings of assemblies enclosing the ESS.
    • The quantities and types of ESS to be installed.
    • Manufacturer's specifications, ratings and listings of each ESS.
    • Description of the energy (battery) management system and their operation.
    • Location and content of required signage.
    • Details on fire suppression, smoke or fire detection, thermal management, ventilation, exhaust and deflagration venting systems, if provided.
    • Support arrangement associated with the installation, including any required seismic restraint.
    • A commissioning plan complying with IFC1206.2.1.
    • A decommissioning plan complying with IFC1206.2.3.
  • Hazard Mitigation Analysis
    • A failure modes and effects analysis (FMEA) or other approved hazard mitigation analysis shall be provided in accordance with Section 104.7.2 under any of the following conditions:
      • Where ESS technologies not specifically identified in Table 1206.1 are provided.
      • More than one ESS technology is provided in a room or enclosed area where there is a potential for adverse interaction between technologies.
      • Where allowed as a basis for increasing maximum allowable quantities. See Section 1206.5.2.
    • Fault Condition: The hazard mitigation analysis shall evaluate the consequences of the following failure mode. Only single failure modes shall be considered.
      • A thermal runaway condition in a single ESS rack, module or unit.
      • Failure of any battery (energy) management system.
      • Failure of any required ventilation or exhaust system.
      • Voltage surges on the primary electric supply.
      • Short circuits on the load side of the ESS.
      • Failure of the smoke detection, fire detection, fire suppression or gas detection system.
      • Required spill neutralization not being provided or failure of a required secondary containment system.
    • Analysis Approval: The fire code official is authorized to approve the hazardous mitigation analysis provided the consequences of the hazard mitigation analysis demonstrates:
      • Fires will be contained within unoccupied ESS rooms or areas for the minimum duration of the fire-resistance rated separations identified in Section 1206.7.4.
      • Fires in occupied work centers will be detected in time to allow occupants within the room or area to safely evacuate.
      • Toxic and highly toxic gases released during fires will not reach concentrations in excess of Immediately Danger to Life and Health (IDLH) level in the building or adjacent means of egress routes during the time deemed necessary to evacuate occupants from any affected area.
      • Flammable gases released from ESS during charging, discharging and normal operation will not exceed 25 percent of their lower flammability level (LFL).
      • Flammable gases released from ESS during fire, overcharging and other abnormal conditions will be controlled through the use of ventilation of the gases preventing accumulation or by deflagration venting.
  • Large Scale Fire Test
    • Where required elsewhere in Section 1206, large scale fire testing shall be conducted on a representative ESS in in accordance with UL 9540A. The testing shall be conducted or witnessed and reported by an approved testing laboratory and show that a fire involving one ESS will not propagate to an adjacent ESS, and where installed within buildings, enclosed areas, and walk-in units will be contained within the room, enclosed area or walk-in unit for a duration equal to the fire resistance rating of the room separation specified in Section 1206.7.4. The test report shall be provided to the fire code official for review and approval in accordance with Section 104.7.2.

The standby power shall be capable of operating the emergency responder radio coverage system at 100 percent system operation for a duration of not less than 12 hours.

Current Oklahoma code, IFC and NFPA 855 will both require a water supply system be installed. Either fire hydrants or another positive pressure water supply will be required. See OUBCC's amended IFC Chapter 12 for indoor ESS.

The Office of the Oklahoma State Fire Marshal currently has no setback requirements, other than what is currently required by the IBC, IFC, and or NFPA for such facilities (i.e., lot lines, property line, distance to structures, etc.). Any zoning regulations or other setback requirements may be required by other agencies or jurisdictions if applicable, such as a county flood plan permit.

Photovoltaic Systems (PV) / Solar Panels

The installation of solar panels whether on a commercial building or standalone solar PV structural array require permits.

The plans submitted should include a site plan and construction plans, along with a completed online building application.

The solar panel structures would be required to be in compliance with any requirement of the IBC/IFC to include but not limited to IBC Chapter 31 - Ground-mounted photovoltaic systems and these systems shall be designed and installed in accordance with IBC Chapter 16, International Fire Code to include Chapter 12 and NFPA 70.

The installation of any support buildings or energy storage systems buildings (ESS) if applicable to your project would also be required to be permitted with our office in accordance with Oklahoma law, along with meeting the requirement for both the currently adopted editions of IBC/IFC.

The Office of the Oklahoma State Fire Marshal currently has no setback requirements, other than what is currently required by the IBC, IFC, and or NFPA for such facilities (i.e., lot lines, property line, distance to structures, etc.). Any zoning regulations or other setback requirements may be required by other agencies or jurisdictions if applicable, such as the county and or require a county flood plan permit.

Elements allowed to be started prior to permitting

Earthwork

  • Site work and site utility plans
  • Cast Piles
  • Concrete pile caps

Concrete

  • Foundations, piers, and grade beams
  • Slabs on grade and suspended slabs
  • Structural: columns and beams
  • Civil abutements and retaining walls

Directives

  1. Immediately upon submission, a permit file number is assigned to each project. That file number can be provided by the applicant to the owner or anyone else for proof of submission if that is requested or required.
  2. The project status starts off as 'Received'. The complete list of statuses, in order, are listed in the 'Status Changes in Accela' information on this page.
  3. The status will remain as 'Received' until the submittal is processed and the invoice is issued. The listed applicant and listed owner will receive an invoice emailed from noreply@oksfm.org. Payment can be made using the online payment portal that is linked in the invoice, in the invoice email, or here: Online Payments: Oklahoma State Fire Marshal.
  4. All fees must be paid prior to the review. The project will not be submitted in line for review until the fees are paid.
  5. Once the project is paid, the receipts will be processed and the system will be updated with a copy of the receipt in the record documents and an updated status of 'Pending Review.'
  6. When a reviewer is working on the submittal, the status will update to 'In Review.' If the reviewer needs additional items or corrections, both the applicant and owner will be notified via the noreply@oksfm.org email. If you need assistance in submitting corrections, refer to the View EPR Applicant Guide to Responding to Corrections. Failure to respond or submit revisions or corrections within 7 business days will result in disapproval.
  7. If disapproved, you will be required to start the process again to include resubmittal fees.
  8. Failure to follow the listed requirements will result in rejection or disapproval and will require a resubmittal, which means the submittal will need to be reapplied for, starting at the beginning.
  9. Please submit quality plans for review. The better the plans, along with completion/submittal of requested documentation, the faster the plan review process.
  10. The listed applicant and listed owner will receive email notices from the system (noreply@oksfm.org) at each benchmark of the submittal process, including when it is invoiced, if there are corrections required, and when the permit is issued.

Status Changes in Accela

  • Received
  • Possible: Pending Information *
  • Fees Due *
  • Pending Review
  • In Review
  • Possible: Corrections Required *
  • Ready to Issue *
  • Issued *

* Indicates notification emails are sent from noreply@oksfm.org to the listed applicant and the listed owner when this status is updated.

The status of online projects is available at all times by the applicant logging in to the Accela Citizen Portal.

Plans are reviewed on a first come, first served basis and in the order received.

While we strive for a 30-day or faster turnaround, plan review queue times are dependent on the number of submittals received, size and complexity of the project, the quality of the plans and documents provided, and available staff.

The office does not have a different status than what is reflected in the Citizen Portal. Updates are not and will not be provided during the review by office staff, due to the availability of the status by the applicant and the automatic email notifications sent by Accela at the milestones indicated above.

When the plan review is approved by OKSFM, the listed applicant and listed owner will be notified by email. A 'Ready to Issue' email is sent from Accela. If there are no additional fees due, the permit will also be issued, which will be indicated by another email stating 'Issued'.

If there are additional fees due after review due to an incorrect square footage provided on the application or other issue, the status will revise to Fees Due and the submittal will be electronically sent to the front office staff to reissue another invoice.

Once plans are approved and no fees are due, the approved documents can be downloaded from Accela by the applicant logging in to the customer portal, selecting the record, and finding the documents under the Digital Projects tab labelled Approved Documents / Files. The documents can be sent by the applicant to any number of people at that time.

Print all approved plans / documents in COLOR and to the size of plan sheet designed. The stamped copy of the approved plans and color permit(s) shall be maintained on the job site.

All OKSFM stamped and approved plans or documents must be printed in color and to the actual size and or scale submitted. Any OKSFM permits, review comments, plans, or other required documents that are not onsite, not printed in color, or not to the size designed, will result in a failed inspection by the OKSFM Agent and incur additional inspection fees for additional inspections and cause delays.

Read the review comments issued. There are instructions included that will tell you anything that needs to be done before the project can be inspected. Building permit review comments will list all other permits that are required to obtained for the project.

If there are any deviations from the approved plans, the appropriate permit applicant will need to apply for an addendum through the Accela portal. All deviations to issued permits require an addendum to be reviewed and approved by the OKSFM and will require the addendum permit and stamped approval onsite along with the permit(s). OKSFM agents will not approve a project that does not match the approved drawings / documents. See 'Pre-Submittal' tab on this page for addendum submittal requirements.

Addendums are required to correct all changes to approved permits, including but not limited to:
> Yes / No questions marked incorrectly on the application
> Project name change (only 1 name change per permit is allowed)
> Project address correction
> Request permit extension (only one 6-month extension is allowed). Submitted addendum must be received BEFORE the permit expires.

All projects are subject to final on-site field inspection by the Oklahoma State Fire Marshal's Office. Additional on-site inspections caused by failure to comply with applicable codes, deviation from approved plans, or failure to have the appropriate documents onsite, will be billed at $100 per site visit.

Only the person who filled out and applied for the submittal has access to download the approval. It is the applicant's responsibility to send the approved reports to any party who needs them.

Retrieve approved documents.

Print the approved plans / documents in color and to the size of plan sheet designed.

A printed copy of the approved plans is required to be onsite.

Last Modified on Dec 03, 2025
Back to Top
